Relayer Architecture

The v1 relayer is built and lives at relayer/ in the repository (TypeScript, run with npm run once for a single cycle or npm start for the loop). The full stack was exercised end to end against live Mad Lads data from Magic Eden on 2026-07-23: the relayer estimated and pushed the index, then the market ran curve launch, graduation, AMM trading, a hedger short, and funding accrual against it. On 2026-07-24 the card pipeline did the same live: Umbreon VMAX Alt Art (swsh7-215, RAW, $2,137.76 on TCGplayer) landed on chain at 28.32 SOL through a live Pyth SOL/USD read, within 2 bps of source, and the Meteora DAMM mark source was verified against a live SOL-paired pool. Source coverage still grows over time; per-pipeline status is noted on the card pipeline and NFT pipeline pages.

Overview

Every commas market prices its synthetic against an index: the current market value of the collectible (a graded card, a basket of cards, or an NFT collection floor), expressed in lamports per whole unit. That index does not exist on any chain. The relayer is the market’s price feed: a service commas runs that reads the collectible’s real prices from marketplaces (eBay and TCGplayer aggregates, Collector Crypt, Magic Eden), filters manipulation, and writes the result on chain with a signature the program trusts.

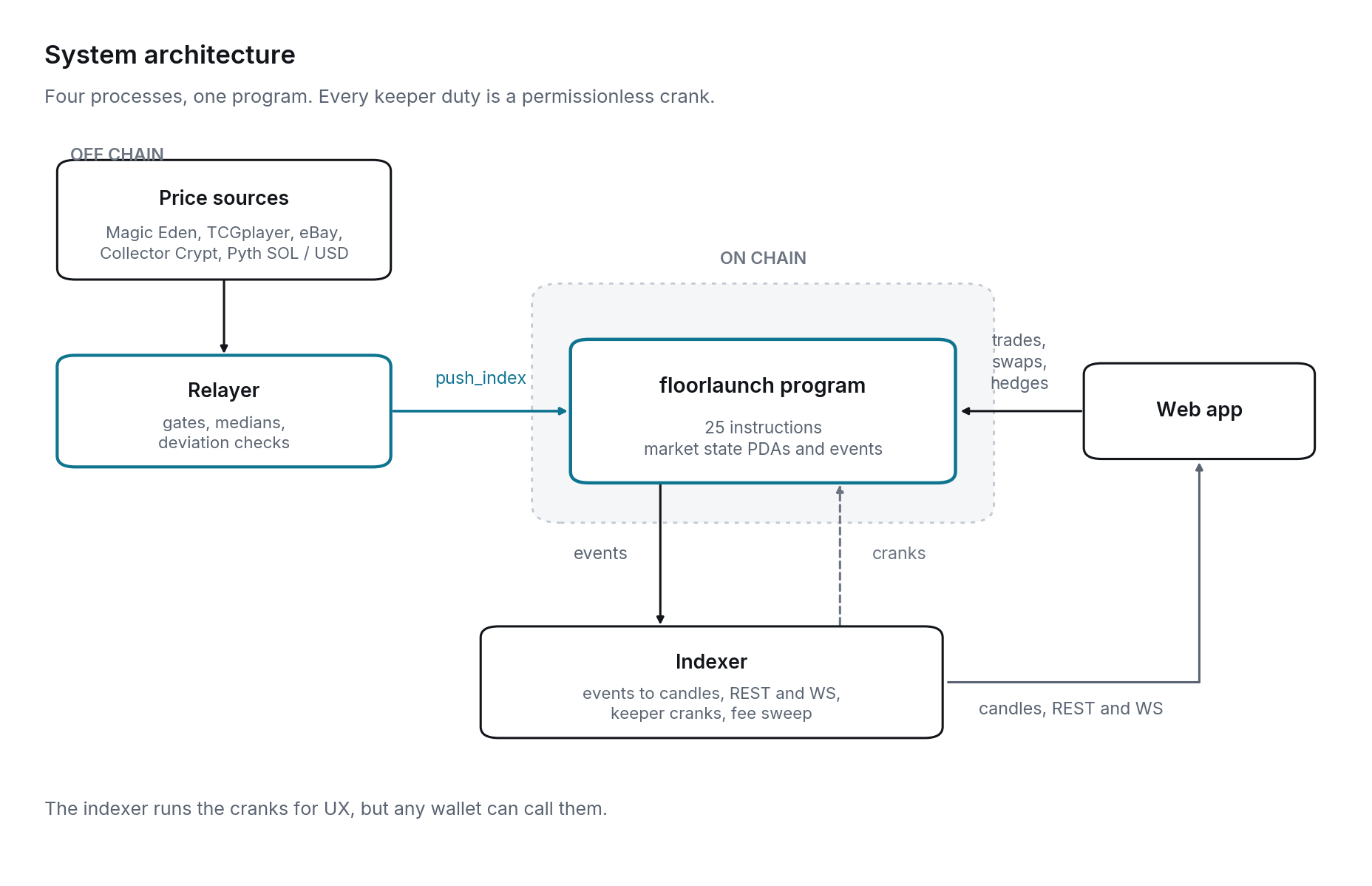

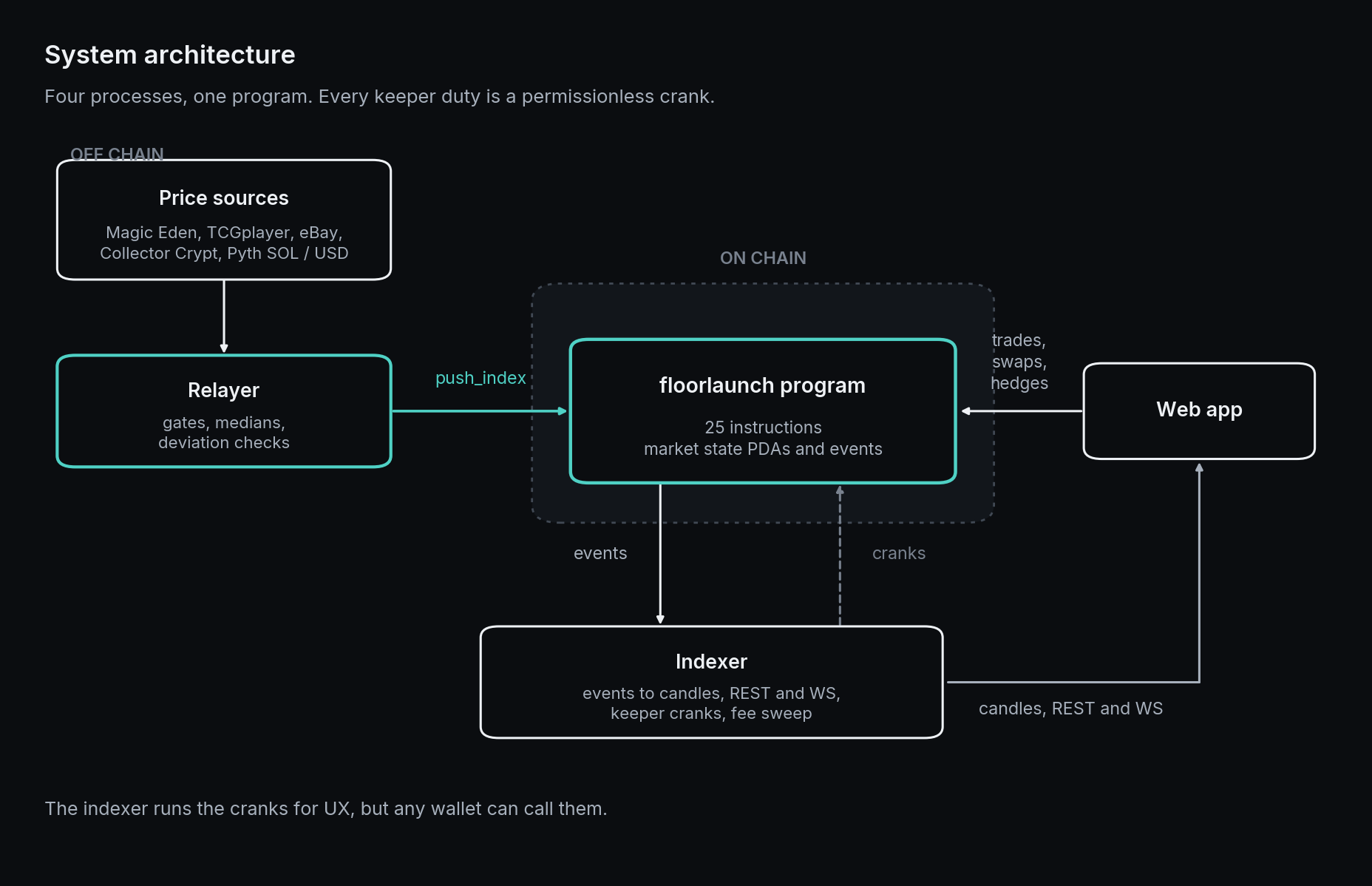

The system: sources, relayer, program, indexer, app.

The relayer is a single off-chain process that:

holds the oracle authority keypair (the only key the program accepts for push_index and push_mark),
reads a per-market config mapping each market’s address to an underlying spec (which card, which grade, which sources, which gates),
runs a fetch, estimate, gate, convert, push cycle for every configured market, typically hourly.

One relayer instance serves all markets. Adding a market is one config entry plus an on-chain create_market. The config is a YAML file (see relayer/config/relayer.example.yaml):

rpcUrl: http://127.0.0.1:8899
programId: QsixfrupxfVEDDYuQsR4vJcE58bbNfctD9WjijM9BjM
oracleKeypair: keys/oracle.json
idlPath: ../target/idl/floorlaunch.json
intervalSecs: 3600

markets:
  # NFT collection, priced from Magic Eden
  - kind: nft
    market: <MARKET_PDA>
    symbol: mad_lads
    lookbackDays: 3
    minSales: 5
    maxDisagreementBps: 2500

  # Raw card, live keyless source (TCGplayer market via pokemontcg.io)
  - kind: card
    market: <MARKET_PDA>
    name: "Umbreon VMAX Alt Art"
    grade: "RAW"
    source: pokemontcg
    cardId: swsh7-215
    variant: holofoil
    lookbackDays: 14
    minSales: 5
    maxDisagreementBps: 1500

  # Graded card until the graded API key lands: operator-attested USD
  - kind: card
    market: <MARKET_PDA>
    name: "Umbreon VMAX Alt Art"
    grade: "PSA 10"
    source: manual
    usdPrice: 4500
    lookbackDays: 14
    minSales: 5
    maxDisagreementBps: 1500

  # External-venue market: also compute and push the mark from Meteora
  - kind: nft
    market: <MARKET_PDA>
    symbol: some_collection
    externalPool: <DAMM_POOL_ADDRESS>
    synthMint: <TOKEN_MINT>
    lookbackDays: 3
    minSales: 5
    maxDisagreementBps: 2500

The cycle

For each market, each cycle:

Fetch raw data from every configured source (sale prints, bids, asks, marketplace quotes). Sources differ per asset class; see the card pipeline and NFT pipeline.
Estimate a single fair value in USD (cards) or SOL (NFT floors) using recency-weighted medians with outlier rejection.
Gate the estimate. If sources disagree too much, or there is not enough underlying trade activity in the window, the relayer does not push. It holds the last value and raises an alert instead.
Convert to lamports per unit. Dollar-denominated estimates go through a Pyth SOL/USD read.
Push a signed push_index(price_lamports) transaction for the market.
External-venue markets only: additionally compute the mark price from the configured Meteora DAMM pool (reserve amounts from Meteora’s public API; the pool must be a synth/WSOL pair) and push it with push_mark. The on-chain program never parses external pool bytes; the mark enters through the same oracle-signed, EMA-smoothed, funding-clamped path as everything else. See Venues.

Defense in depth: what the chain adds

The relayer is a trusted component, but the program is designed so that trust is bounded. A pushed price passes through four on-chain defenses before it can affect anyone’s position:

Defense	Parameter	Effect
Push rate limit	`min_push_interval_secs`	Caps how often the index can be touched at all
EMA TWAP	`index_window_secs`	A single push only pulls the index part of the way toward the new print
Circuit breaker	`breaker_bps`	A push deviating too far from the TWAP freezes the market instead of entering the index
Funding clamp	`max_funding_bps_per_day`	Even a wrong index can only tilt a bounded daily funding flow
Staleness guard	`max_index_age_secs`	An index the relayer stops refreshing stops being trusted: shorts, withdrawals against debt, funding, and liquidations halt until the feed resumes

There is no instruction anywhere in the program that redeems or pays out third-party funds at the oracle price. A bad print can tilt funding and shift collateral-ratio checks; it cannot drain a pool.

Pushes as heartbeat

The relayer pushes every cycle even when the price is unchanged. Each accepted push updates index_last_ts on the market account, which both drives the on-chain staleness guard and lets anyone (UIs, bots) read exactly how fresh the index is. A market whose index_last_ts is hours old is visibly stale, and past max_index_age_secs it stops being trusted at all. See Operations for key handling, alerting, and failure behavior.
